How an Attenuation Tank Works: Mechanism, Flow Control and UK Sizing

By AQUA Rain Water Solutions | February 17, 2026 | 13 min read

Picture a brand-new housing estate, six months after handover. The roads are down, the landscaping is done, and the first proper autumn downpour arrives. Within forty minutes, the car park is ankle-deep. The developer is on the phone. The problem isn’t the drain in the corner. It’s the volume of surface water that the new impermeable surfaces generate. Water that used to soak into fields and now has nowhere to go fast enough. Victorian drainage philosophy said move water away quickly. The SuDS (Sustainable Drainage Systems) philosophy says hold it, then release it slowly.

Attenuation tanks work by acting as a temporary underground reservoir. Runoff from roofs, roads, and paved surfaces enters the tank during heavy rainfall. A flow control device at the outlet restricts discharge to match the pre-development greenfield runoff rate (the rate at which water left the site before it was built on), preventing downstream sewer overloading and surface flooding. The system operates under requirements set by the Lead Local Flood Authority (LLFA) through the Flood and Water Management Act 2010. If you want to understand what an attenuation tank actually is before getting into the mechanics, that article covers the basics.

How Water Flows Through an Attenuation Tank

Think of it like a bathtub. The tap (rainfall) can run at any rate you like. The drain (the flow control device) determines how fast water leaves. When the tap runs faster than the drain can handle, the bath fills up. That is exactly what happens underground during a storm event.

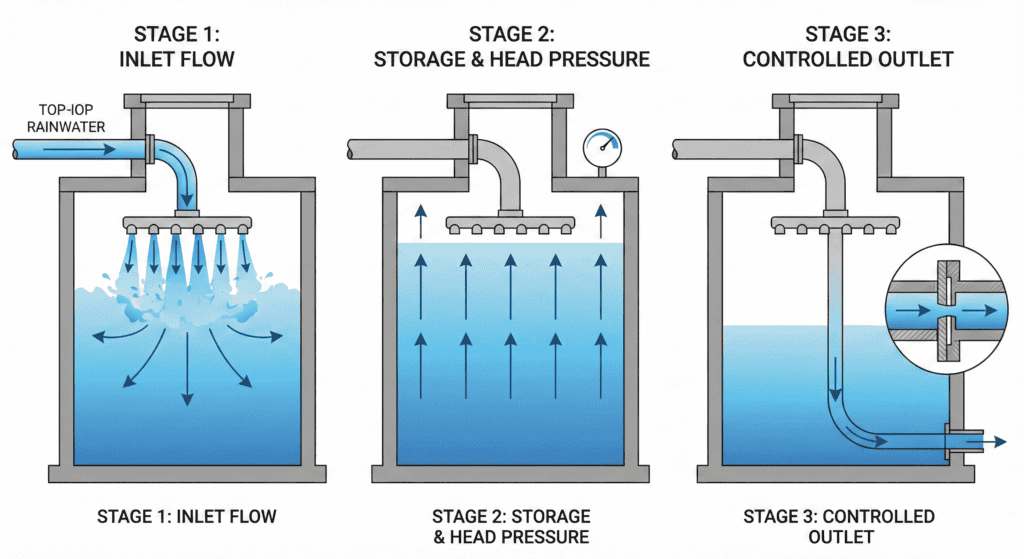

The mechanism breaks down into three stages.

Stage one: inflow and energy dissipation. Runoff from roofs, car parks, and paved areas arrives at the inlet pipe with significant velocity. Without an energy dissipation device or spreading manifold at the inlet, that force scours and damages the geocellular modules (the modular polypropylene units that form the tank body). Most modern systems include a manifold that diffuses the incoming flow across multiple entry points, spreading the energy before it reaches the crate structure.

Stage two: storage and head build-up. The flow control at the outlet restricts discharge to, say, 5 litres per second. Inflow exceeds outflow, water accumulates in the void space between the crate columns, and the water level rises. As it rises, hydraulic head develops: the weight of water above creates hydrostatic pressure at the outlet. This pressure is what drives the controlled discharge.

Stage three: controlled release. The storm eases. Inflow drops below the outlet rate. The stored water continues draining at the restricted flow rate until the tank empties completely. The system resets, ready for the next event.

The hydrograph tells the story clearly. Without attenuation, the peak flow rate is sharp and tall. With a tank in the system, that peak is flattened and spread over a longer period. The tank does not reduce the total volume of water entering the drainage system. It smooths the rate at which it arrives.

One thing that catches engineers out: tank sizing is a dynamic simulation, not a back-of-envelope calculation. Engineers model storms ranging from 15 minutes to 48 hours in proprietary drainage modelling software, running each duration to find the critical storm (the event that generates maximum storage demand). A 15-minute intense burst and a 48-hour prolonged event generate very different hydrographs. The critical storm is whichever one fills the tank furthest, and you cannot know which that is without running the full range.

The three-stage mechanism is the mental model to carry through the rest of this article. Flow control choice, material selection, and maintenance strategy all connect back to understanding how inflow, storage, and controlled release interact.

Vortex Flow Control vs Orifice Plate for Attenuation Tanks

The flow control device is arguably the single most important component in the system. Two technologies dominate: the orifice plate and the vortex flow control (VFC).

Orifice plates are the older, simpler option. A metal plate with a precisely sized aperture. Flow through an orifice is proportional to the square root of the water head above it. That sounds neat until you do the maths for a low-flow site. For discharge rates below 5 litres per second at shallow burial depths, the aperture has to be smaller than 50mm. An opening that small blocks with leaves, grit, and construction sediment. Frequently. The maintenance implications are significant and ongoing.

And what happens as the tank starts to empty? The drainage rate tells you. As water level drops and head reduces, the orifice flow rate decays rapidly. A tank that discharged at 5 l/s when full may only manage 1 l/s when half empty. The lower portion of storage volume is barely exploited.

Vortex flow controls work on a completely different principle. At low flow and low head, water passes through almost unimpeded, like a large open pipe. As head increases with a filling tank, tangential entry channels force the water into rotation. A spinning air core forms in the centre of the chamber. This rotating fluid creates massive hydraulic resistance, effectively a fluid brake, while the physical opening remains large. The outlet area on a VFC is typically six times larger than an equivalent orifice for the same design flow rate. That large opening is almost impossible to block with typical site debris.

The S-curve performance characteristic of VFCs means higher average discharge across the full storm duration. The tank empties faster between events. This performance advantage allows engineers to reduce the required storage volume by 15 to 30 per cent compared to an orifice plate design. On a project requiring 200 cubic metres of storage, that is 30 to 60 cubic metres less excavation, less membrane, and fewer geocellular crates. VFCs include an emergency bypass for extreme events and a ground-level operating rod for maintenance access.

TABLE 1: Vortex Flow Control vs Orifice Plate

Dimension	Orifice Plate	Vortex Flow Control	Engineering Impact
Clog Risk	Very High (aperture <50mm for low flows)	Low (large aperture, self-cleaning by design)	VFC reduces maintenance call-outs significantly
Hydraulic Model	Linear: flow decays as head falls	Optimised S-curve: consistent discharge	VFC reduces required tank volume by 15–30%
Initial Cost	Low (simple metalwork)	Medium-High (precision engineering)	VFC higher unit cost, lower whole-life TOTEX
Energy Dissipation	Low	High: rotation absorbs kinetic energy	VFC reduces downstream scour risk
Maintenance	Frequent manual intervention	Passive: mainly periodic inspection	VFC has emergency bypass + operating rod

For most sites above 0.5 hectares, the VFC pays for itself purely in reduced tank volume. We would pick a vortex flow control over an orifice plate on any new-build project. Anyone still specifying orifice plates for standard residential or commercial schemes is leaving money on the table. The TOTEX (total expenditure: capital plus operational costs over the asset life) almost always favours the VFC.

For more on how flow control specification affects geocellular attenuation tanks design, the product guide covers system layouts and sizing parameters.

How Does an Attenuation Tank Affect Your Drainage Design?

An attenuation tank changes drainage design by requiring greenfield runoff rate calculations using the FEH statistical method (now superseding IH124), flow control device sizing, BRE 365 percolation testing to formally rule out infiltration first, and climate change storage uplift of 20 to 45 per cent or higher depending on river basin district and development lifetime. Under Environment Agency guidance, most residential designs must use the 2070s epoch allowances. The tank is the last resort in the SuDS hierarchy, not the first choice.

The design process starts with the greenfield runoff rate. The FEH (Flood Estimation Handbook) statistical method is now the industry standard, updated in 2025 with new rainfall descriptors including SAAR9120 data covering 1991 to 2020. FEH uses Qmed values derived from fine-resolution digital soil data called BFIHOST. The older IH124 method (based on Qbar rate and WRAP soil classification maps) is still encountered on legacy projects, but submitting a planning application relying solely on IH124 without FEH cross-verification is now considered a risk factor by most LLFAs. For sites below 50 hectares the practical difference between methods is often marginal, but the direction of travel is clear. Check with your LLFA before finalising the hydrology numbers, because not every authority interprets the acceptable calculation method the same way.

There is also a minimum discharge floor to be aware of. Most LLFAs require at least 2 to 3 litres per second per hectare as the minimum permitted discharge, regardless of what the greenfield calculation produces. This floor prevents the flow control aperture becoming impractically small.

Before you touch tank sizing, you must carry out a BRE 365 percolation test. BRE 365 is the standard procedure published by the Building Research Establishment for testing soil drainage capacity. You dig a trial pit, fill it with water, and record the rate at which the water level drops over time. Only when the soil fails this test (because clay content is too high, or because groundwater sits too close to the surface) can you formally proceed to attenuation as the primary drainage strategy. This is the step that clients and contractors most commonly skip. Skipping it risks having your planning application rejected by the LLFA. Your drainage statement needs to demonstrate that infiltration has been properly assessed and discounted first. The Building Regulations Approved Document Part H sets out this hierarchy clearly. See the complete guide to attenuation tanks in the UK for the full SuDS hierarchy.

Climate change is the other major design input. The Environment Agency requires storage uplift to account for increased rainfall intensity over the design lifetime of the drainage infrastructure.

TABLE 3: Environment Agency Climate Change Storage Allowances (UK)

Epoch	Design Period	Central Allowance	Upper End Allowance	Typical Application
2050s	2022–2060	+20%	+35%	Commercial / short-term assets (30–50yr life)
2070s	2061–2125	+25%	+40–45%	Residential (100yr life). Standard design baseline

Those figures are national ranges. The actual uplift percentage varies by river basin district. South Essex requires 45 per cent. Parts of the North West reach 50 per cent. Anglian and Thames are typically 40 per cent. Always look up the specific management catchment for your site through the Defra data service rather than assuming a single national figure. For most residential schemes, you are designing to the 2070s upper end epoch. That means adding 40 to 50 per cent to your baseline storage volume depending on location. We’re not designing for today’s rain. We’re paying for 2070s climate reality.

That covers the design process. The next decision is what the tank is actually made of.

Geocellular vs Concrete Attenuation Tanks Compared

The market broadly splits between geocellular modular systems and precast concrete, with large-diameter pipes and GRP (glass-reinforced plastic) filling specific niches.

Geocellular modules (polypropylene or PVC modular crates) dominate residential and commercial sites. Their void ratio (the proportion of total excavated volume that becomes usable storage) is quoted at 95 to 97 per cent. The modules stack in any configuration, adapt to irregular plot shapes, and require relatively light plant.

The honest caveat: don’t blindly accept the manufacturer’s 95 per cent void ratio figure in your calculations. In practice, structural displacement from the plastic column and beam framework accounts for 3 to 5 per cent of gross volume. CIRIA C753 (the SuDS Manual, the industry reference document for sustainable drainage design in the UK) recommends a 10 per cent siltation allowance on top of that. Freeboard for flood resilience reduces effective storage further. Your net usable storage is typically 5 to 15 per cent less than the gross void ratio suggests. Apply a safety factor. (This is where many projects get the budget wrong. They specify on gross void ratio and wonder later why the tank filled during a smaller event than the design storm.)

Geocellular systems have one genuine structural weakness: lateral restraint. The plastic frame has no inherent stiffness against sideways loads. It relies entirely on the surrounding backfill material to resist lateral pressure. Poor backfill means poor lateral restraint. Poor lateral restraint means buckling. More on this in the problems section below.

Thermoplastic creep (slow permanent deformation under sustained long-term load) is another consideration for deep burial or heavy vehicle applications. Always verify the manufacturer’s creep test data before specifying.

Precast concrete offers superior structural performance where HGV loading, shallow cover (less than 500mm), or very deep burial is required. Concrete needs no complex granular backfill specification. The trade-offs are cost, weight requiring heavy lifting plant, and sealed joint specification.

TABLE 2: Attenuation Tank Material and Cost Comparison

System Type	Material Cost (£/m³)	Installed Cost (£/m³)	Best Application
Geocellular Modules (PP)	£80–£150	£200–£350	90% of standard residential/commercial; constrained or irregular sites
Precast Concrete	£450–£520	£400–£600	Heavy infrastructure, HGV yards, very shallow or very deep burial
Large Diameter Pipes	Variable	£300–£500	Linear projects (highways); straightforward jetting and maintenance
GRP	£200–£350	£300–£500	Contaminated land; chemical resistance requirements

Cost ranges are industry benchmarks. Actual costs depend on ground conditions, burial depth, membrane specification, access, and regional labour rates.

In practice, geocellular wins on cost and construction programme for roughly 90 per cent of projects. Concrete makes sense when you genuinely need the structural performance. Not as a default fallback because the specification was not thought through carefully.

What Is the Difference Between an Attenuation Tank and a Soakaway?

The answer comes down to where the water goes.

A soakaway is a permeable system. Water enters, percolates through the surrounding stone fill or the geocellular crate structure, and slowly infiltrates into the native soil. The system discharges to ground. An attenuation tank is a sealed system. Water is held in a watertight chamber and released at a controlled rate to the sewer network or a surface watercourse. One discharges to ground; the other discharges to a pipe.

The decision between them is dictated by your BRE 365 percolation test result. If the soil passes (adequate drainage capacity, water table sufficiently deep), a soakaway is the preferred option under the SuDS hierarchy. It recharges groundwater and avoids adding discharge volume to the network. If BRE 365 fails (clay soils, high water table, made ground), attenuation becomes the legal route.

The membrane specification differs entirely between the two systems. Soakaways use a geotextile wrap (a permeable fabric) that allows water to pass through into the surrounding soil. Attenuation tanks require a geomembrane liner (an impermeable sheet, typically HDPE or LLDPE) to prevent any leakage. Tape-only joints on a geomembrane are not reliable under sustained hydrostatic pressure. The correct specification is twin-wedge hot welding, followed by air pressure testing of every weld seam before backfill commences.

One technical detail that gets omitted far too often: vent pipes. When water rushes into an attenuation tank at high velocity, it displaces air. That air has to escape. Without vent risers on both the inlet chamber and the tank top, trapped air pressurises the system. Manholes get blown off. Pipe connections fracture. It sounds dramatic. It is, on the sites where it happens. Always include vent risers to surface level on both inlet and outlet sides. Vent pipes are cheap insurance against catastrophic failure.

For a full side-by-side breakdown of both systems, the attenuation tank vs soakaway comparison covers all the decision factors in detail.

Common Attenuation Tank Problems and How to Avoid Them

Most attenuation tank failures trace back to installation, not product quality. Two cases from sites we know make the point clearly.

Case Study 1: Clay backfill collapse, commercial car park, West Midlands

We were called to a commercial car park site in the West Midlands roughly eight weeks after the tank was commissioned. The surface above the tank had started to sag. Not dramatically, but enough to notice and enough to worry the site manager. The desk study had flagged clay at around 2 metres depth. The ground investigation found it at 1.2 metres. The contractor, under programme pressure to complete the subbase, used as-dug clay for the geocellular tank sidefill rather than the specified Class 6N granular material (free-draining crushed stone, required under BBA certification and CIRIA C737 for geocellular sidefill).

Clay absorbs water. When saturated, it loses its ability to provide lateral passive earth pressure (the sideways restraint that stops geocellular modules from buckling outward). The tank had filled several times through the autumn. With each wetting cycle, the clay softened further. By week eight, three modules in the upper zone had buckled inward. The repair required reopening the excavation on two sides, removing the clay over roughly 17 metres of tank length, recompacting with Class 6N in 150mm layers, and reinstating the surface. The original contractor covered the cost. The programme impact was significant and the client relationship was damaged.

The lesson: never use as-dug material as sidefill for geocellular systems, regardless of what the construction programme says. Specify Class 6N or 6P graded stone for sidefill, compacted in 150mm layers. Include a geotextile separation layer between the granular fill and any native clay to prevent fines migration. If the ground investigation changes during construction and clay appears shallower than predicted, stop. Revise the specification before you backfill.

Case Study 2: Buoyancy failure on a residential site in Yorkshire

We saw this one on a site we visited in Yorkshire. Another contractor’s project. They had installed a geocellular tank on a residential plot in late October, before the road formation was down. Overnight rain over two days saturated the surrounding ground. When the site team returned on the third morning, the entire tank assembly had lifted out of the excavation by around 600mm, snapping every inlet and outlet pipe connection.

No buoyancy calculation had been done. A geocellular tank wrapped in an impermeable geomembrane is essentially a sealed plastic boat. When the surrounding soil becomes fully saturated, the buoyant uplift force on that assembly can exceed the weight of soil covering it. Belt and braces: always complete the anti-buoyancy calculation before installation, and check your construction phasing. If the tank goes in before the road is formed, confirm you have sufficient surcharge to resist uplift during the vulnerable window. If not, use ground anchors.

Both failures were entirely preventable with standard design checks. Nine times out of ten, the problems we see come down to installation quality, not the product itself.

How Long Do Attenuation Tanks Really Last

Quality geocellular attenuation tanks with verified creep test data can meet their 50 to 100-year design life where correctly installed and maintained. The real threat to longevity is siltation from poor maintenance, not structural material failure. Systems without proper inspection access or upstream pre-treatment may lose 40 to 60 per cent of effective storage capacity within 20 to 25 years as sediment accumulates.

Structural longevity starts with the product specification. Polypropylene geocellular modules do not corrode or degrade in normal buried conditions. The risk is thermoplastic creep under sustained long-term load at depth. Our modules come with independent creep test reports demonstrating structural integrity under expected load conditions over decades. Always request those test certificates before specifying any geocellular system. If a supplier cannot produce them, that is a red flag. Cheap, unverified modules, particularly lower-specification imports, may not meet the 50-year claim in the product brochure.

The real lifespan killer is siltation, not the material.

During dry periods between storm events, fine sediment and suspended solids settle out in the tank base. The next significant storm creates a first flush effect: the initial surge scours and resuspends this concentrated material and sends it downstream. It is simultaneously a water quality problem and a capacity problem. An Essex residential estate experienced downstream flooding less than two years after handover. The silt trap upstream of the tank was a basic catchpit (an underground chamber for sediment collection) that had never been cleared. The tank itself was approximately 60 per cent silted, leaving barely half its designed storage capacity available.

Early geocellular systems cannot be cleaned in situ. The internal crate matrix has no clear access route for jetting equipment or a CCTV survey camera. Once silted, the only practical fix is excavation and rebuild. Modern inspectable geocellular systems incorporate dedicated internal inspection tunnels. Maintenance access manholes must align with those tunnels to give a straight run for a jetting lance. If the manhole and tunnel are offset, the maintenance crew cannot reach the problem zones.

Upstream pre-treatment is the most cost-effective investment in tank lifespan. A hydrodynamic separator upstream of the attenuation tank separates silt, grit, and hydrocarbons from stormwater flow before it enters the tank. Stop specifying non-inspectable crates for any adoptable infrastructure. The tiny initial saving on non-inspectable systems gets swallowed by the first major maintenance intervention, invariably within five to eight years.

Frequently Asked Questions

Getting the Design Right From the Start

The developer with the flooded car park at the start of this article is not a hypothetical. Versions of that scenario play out every autumn across the UK, and the cause is almost always the same: surface water drainage that was under-designed, improperly installed, or never maintained after handover. An attenuation tank specified to the correct volume, with a vortex flow control, inspectable geocellular modules, upstream pre-treatment, and a proper maintenance plan should perform for its full design life. That is achievable.

The engineering principles covered here apply well beyond the UK. Ireland follows a similar SuDS framework under OPW guidance. The Netherlands regulates stormwater attenuation through the Waterwet. Germany uses DWA-A 138 for infiltration and retention design. Belgium applies Vlarem II. The hydraulic mechanisms, flow control selection, material trade-offs, and installation practices are the same across all these markets. The regulatory wrapper changes; the physics does not. If you are working on a project in any of these regions, the sizing logic and material guidance in this article translates directly once you substitute local discharge consents and climate data.

We supply geocellular stormwater modules in both 900mm and 530mm heights, with independent creep test data and full installation documentation. If you are working on a scheme and need to check sizing or material options, our technical team can review your drainage strategy and suggest a system layout. Explore our subsurface stormwater management systems for void ratios, load classes, and application guidance.

Disclaimer: Case studies in this article are illustrative examples based on common UK project scenarios. Specific project requirements vary by site conditions, local authority interpretation, and applicable regulations. Always consult a qualified drainage engineer and your Lead Local Flood Authority (LLFA) before finalising drainage designs. Cost data represents industry benchmark ranges and should not be relied upon for project budgeting without site-specific assessment.
