Honeycomb Drainage Cells — Ultra-Shallow Geocellular for SuDS & Paving

Near-surface storage, conveyance and load distribution beneath permeable pavements and landscapes—cut excavation depth and manage runoff on SuDS and blue-green roof schemes.

Cut excavation depth by 30% & reduce muck-away vs. traditional aggregate sub-bases while keeping pavements traffic-rated.
Control runoff at source with high void ratio modules that detain, infiltrate or wick water to planting.
Fast, modular build — interlocks in eight directions; stack up to twenty layers for shallow or deep envelopes.
Stocked locally for fast delivery to site.

Request Design & Quot

Download Deta Sheet

Why Choose Honeycomb Geocellular Modules?

The ultra-shallow, high-strength sub-base replacement system that reduces excavation costs and optimizes SuDS performance.

High Load-Bearing Capacity

Engineered to withstand extreme vertical loads up to 80 tonnes/m². This heavy-duty structural integrity makes it ideal for fire lanes and HGV access roads, eliminating the need for traditional concrete sub-bases.

Rapid Interlocking Installation

Features a unique 12-point interlocking system for secure connections. The lightweight modular design allows for quick manual installation, significantly reducing labor time and machinery costs on-site compared to aggregate drainage methods.

Superior Hydraulic Performance

Boasts a 95% void ratio for maximum water storage efficiency. The open honeycomb structure ensures rapid stormwater infiltration and prevents blockage, far outperforming the flow rates of gravel or stone trenches.

Cost-Effective Shallow Profile

The ultra-shallow design minimizes excavation depths and soil removal requirements. This significantly reduces muck-away costs and carbon footprint, making it the perfect sustainable choice for modern SuDS compliant drainage projects.

Honeycomb Cell Product Family & Accessories

Main module

shallow honeycomb drainage cell module with 95% void ratio for stormwater attenuation

PP geocellular unit (2.05 kg, 577 × 500 × 82 mm) with 95% void ratio and >52% perforation for rapid intake and through-flow.

Components

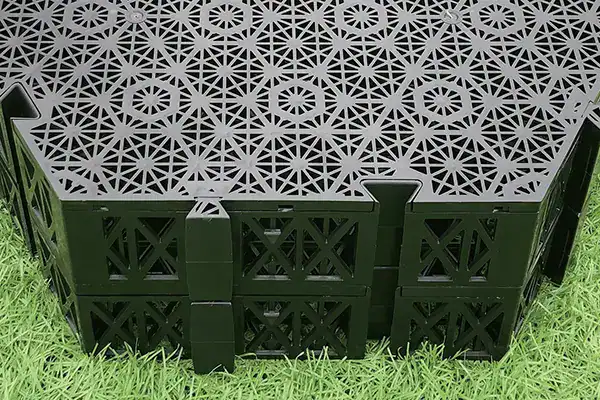

Drainage cell accessories including lap pieces and vertical patches for edge finishing

Upper/lower lap pieces, horizontal & vertical patches, and turning parts to form clean edges, corners and height transitions.

Interlocks

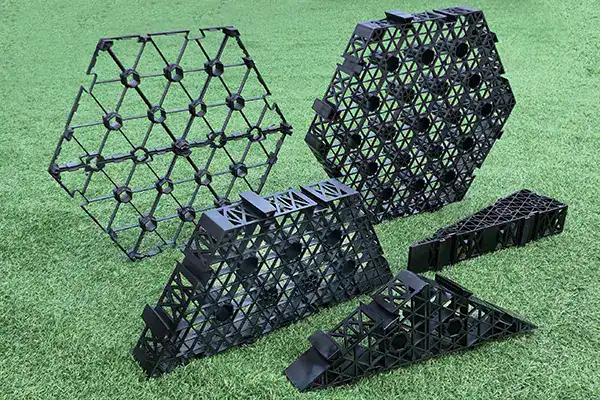

12-point clip-lock connectors ensuring shear continuity and structural stability for honeycomb rafts

12 interlocks per panel — positive vertical & horizontal locking for shear transfer and faster installation; 8-direction fit for complex layouts.

Pre-panels

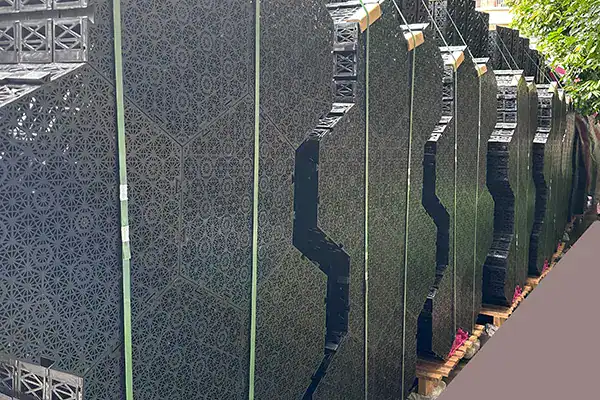

Pre-assembled large drainage panels (≥9m²) for rapid installation on large podiums and car parks

Pre-assembled panels (≥9 m²) — factory-built mats delivered to site to reduce labour time and improve QA consistency.

Applications For SuDS, Permeable Paving & Blue-Green Infrastructure

Use the shallow geocellular layer as a load-bearing sub-base that can detain, infiltrate or convey runoff across roads, plazas, podiums, sports fields and green-roof schemes.

Shallow geocellular sub-base replacement under permeable paving for heavy traffic loads

Permeable Paving & Driveways

Acts as a high-strength sub-base replacement for block paving. Eliminates surface ponding and withstands vehicle loads, making it ideal for residential driveways and commercial parking lots.

Blue-green roof drainage layer on podium deck enabling passive irrigation for vegetation

Blue-Green roofs Gardens & Podiums

Lightweight modules protect waterproofing layers while managing heavy rainfall. The high void ratio reduces dead weight on building structures, creating an efficient drainage layer for green roofs.

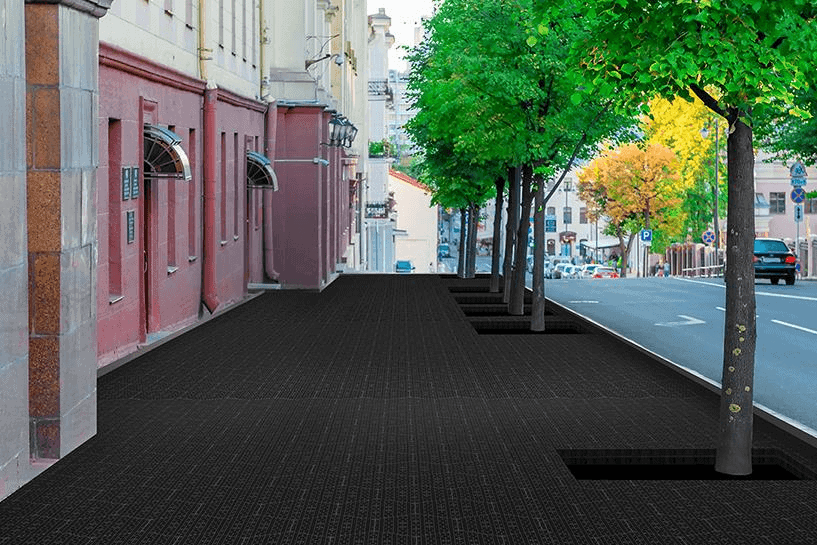

Honeycomb drainage cells installed in urban tree pits to prevent soil compaction and provide root aeration under paved surfaces.

Tree Pits & Root-Friendly Pavements

Acts as a load-bearing, ventilated raft that prevents soil compaction. It keeps pavements flat while delivering essential aeration and passive irrigation directly to street tree roots for long-term health.

Shallow sub-base drainage modules laying under sports turf for rapid lateral water flow and surface stability.

Sports & Turf — Fast Lateral Through-flow

A lightweight, shallow sub-base replacement providing uniform surface-wide drainage. Its open structure allows fast lateral water flow, keeping sports pitches dry and playable even during heavy storm conditions.

Installation guide (shallow geocellular SuDS layer)

Infiltration (into subgrade), detention (lined), or blue-green roof with passive wicking.

Excavate
Excavate a shallow trench or raft to the design footprint, allowing for wrap and surface build-up. Keep sides neat for edge confinement..
Prepare the wrap (pick one)
Infiltration — line the excavation with permeable geotextile; lap joints to prevent soil ingress.
Detention / conveyance — install a watertight membrane (geomembrane); protect with fleece; form penetrations for inlets/outlets.
Assemble the raft
Place pre-assembled panels (≥ 9 m²) or modules; lock with 12 interlocks; the system builds in 8 directions to navigate corners and services. Connect inlets, outlets and inspection points.
Wrap, backfill & reinstate
Fold and seal the wrap; place protection/cover layers; reinstate the surface. Verify cover and edge confinement and record as-built photos.

Step-by-step installation of honeycomb drainage cells: excavation, geotextile lining, and module assembly

High-Strength Modules Technical data

Item	Value	Notes
Main module size	577 × 500 × 82 mm; 2.05 kg	Compact module for rapid handling and layout.
Void ratio / perforation	95% / >52%	High storage volume and rapid intake to the layer.
Vertical strength	≥800 kN/m² (max ~1,330 kN/m²)	Traffic-rated when installed with correct cover and confinement.
Lateral strength	≥200 kN/m² (max ~400 kN/m²)	Resists shear and spreads loads across the raft.
Layer discharge (0–2% gradient)	50.2 → 94.2 L·s⁻¹·m⁻²	Proven shallow conveyance across the panel layer.
Assembly	8 directions; 12 interlocks; 5 components; pre-panels ≥9 m²	Positive locking and fast installation; factory pre-panels available.
Stacking	Up to 20 layers (design-dependent)	Tune storage depth where excavation is limited.
Material / life	PP; long service life (creep extrapolation up to ~100 years)	Durable polypropylene for long-term performance.

Values are typical/indicative and must be verified for each project and traffic class.

Partner with us. Low input. High return. Full support.

Distribute and install our engineered water and ground solutions—with full technical support, marketing tools, and access to qualified project leads.

Become a partner

FAQ — Engineering & procurement

Why are Honeycomb Drainage Cells hexagonal?

Hexagons tessellate without gaps, so panels sit side-by-side with no wasted space. The geometry gives near-isotropic load distribution, an efficient strength-to-weight ratio, and smooth edges for easy alignment.

Do Honeycomb Drainage Cells need to be cut on site?

No. The system uses a five-part kit (main module plus lap pieces, horizontal/vertical patches and turning parts) that lets you build to almost any footprint without cutting the plastic. Only the wrap (geotextile or membrane) is trimmed.

Why can Honeycomb Drainage Cells carry high loads?

Three things work together:
the cellular web with internal ribs spreads loads through the raft and into the cover;
interlocking connections confine the layer so it acts as a single unit;
high-quality PP material and geometry are optimised for stiffness and creep resistance.

What material are they made from? What is the service life?

Polypropylene (PP), designed for buried use. With correct design, cover and installation, creep testing indicates a long service life (up to ~100 years). Actual life depends on loading, temperature and site conditions.

How are Honeycomb Drainage Cells installed?

Four steps:
excavate the shallow raft;
line with geotextile for infiltration or a waterproof membrane for detention;
place modules or factory pre-panels, engaging the 12 interlocks (buildable in eight directions) and connect inlets/inspection;
wrap, backfill and reinstate the surface.

How much can a crew install per day?

Rates depend on access, pre-panelisation and site logistics. Using pre-assembled panels typically shortens programmes significantly; confirm expected rates with your installer.

How are the products shipped?

By sea or land in containers (a 40-ft high-cube is usual). Panels nest efficiently for lower shipping volume.

What is the typical lead time?

Stock items can ship quickly; larger orders follow a production schedule. Confirm current lead times at quotation.

What surface finishes can go above the layer?

Most hard or soft finishes, including stone, block or tile paving, concrete or asphalt, permeable concrete, rubber, natural turf and artificial turf. For infiltration systems, use permeable finishes; for lined detention, impermeable finishes are fine.

Why is no power needed for irrigation on green roofs or green streets?

Add wicking strips above the cells to move stored water upwards by capillary action. Plant roots take up the moisture from the substrate, creating a passive, pump-free irrigation loop.

What related products are available?

Geotextiles, waterproof membranes and protection fleeces, wicking strips, inspection/access fittings and flow-control components. We can also source specified accessories on request.

Can the system be stacked?

Yes. The modules can be stacked in multiple layers (design-dependent) to tune storage within a shallow excavation.

What about hydraulics and flow?

The open geometry and perforations provide high intake and layer-flow performance for shallow conveyance. Your engineer will size the system to the project rainfall, soil and outlet conditions.

Is it compliant with SuDS practice?

The system is intended for source-control SuDS features (infiltration, detention, conveyance and blue-green roof build-ups). Final compliance depends on local guidance and the project’s civil design.

How do Honeycomb Drainage Cells compare to traditional soakaway crates?

Unlike deep, bulky soakaway crates, our honeycomb drainage cells are designed for ultra-shallow applications. They can be installed directly under permeable paving or driveways with minimal cover depth, reducing excavation costs and avoiding high groundwater tables. Their hexagonal structure also provides superior lateral stability compared to standard square crates.

Is the system flushable and easy to maintain?

Yes. The open void design allows for cross-flushing and inspection using standard CCTV cameras. Silt and debris management is handled via upstream catchpits or integrated silt traps, ensuring the SuDS attenuation system remains effective over its 50+ year design life.

Can these cells be used for fire lanes and HGV access roads?

Absolutely. With a vertical compressive strength of up to 130 tonnes/m², the modules are specifically engineered to support heavy loads, including fire trucks and refuse vehicles, making them an ideal sub-base replacement for commercial and residential developments.
