HDPE Geocell · ASTM / GRI compliant

Enhance Load Support & Slope Stability with Engineered HDPE Geocells”

Engineered HDPE geocells offer durable load support, slope stabilization, and erosion control. Designed for fast installation and long-term performance, meeting ASTM & GRI standards. Ideal for construction, infrastructure, and environmental projects. Private-label options available.

100% Virgin HDPE Material

UV-stabilized with carbon black for enhanced durability and protection against environmental stress.

Ultrasonic Weld Technology

High seam strength for superior performance in demanding conditions.

Perforated & Textured Surface

Ensures strong hydraulic and mechanical interlocking for added stability.

OEM / ODM Capabilities

Custom molds manufactured to your specific design requirements.

Get a Quote
See Specs

Lead Time: 2–4 Weeks | Global Shipping

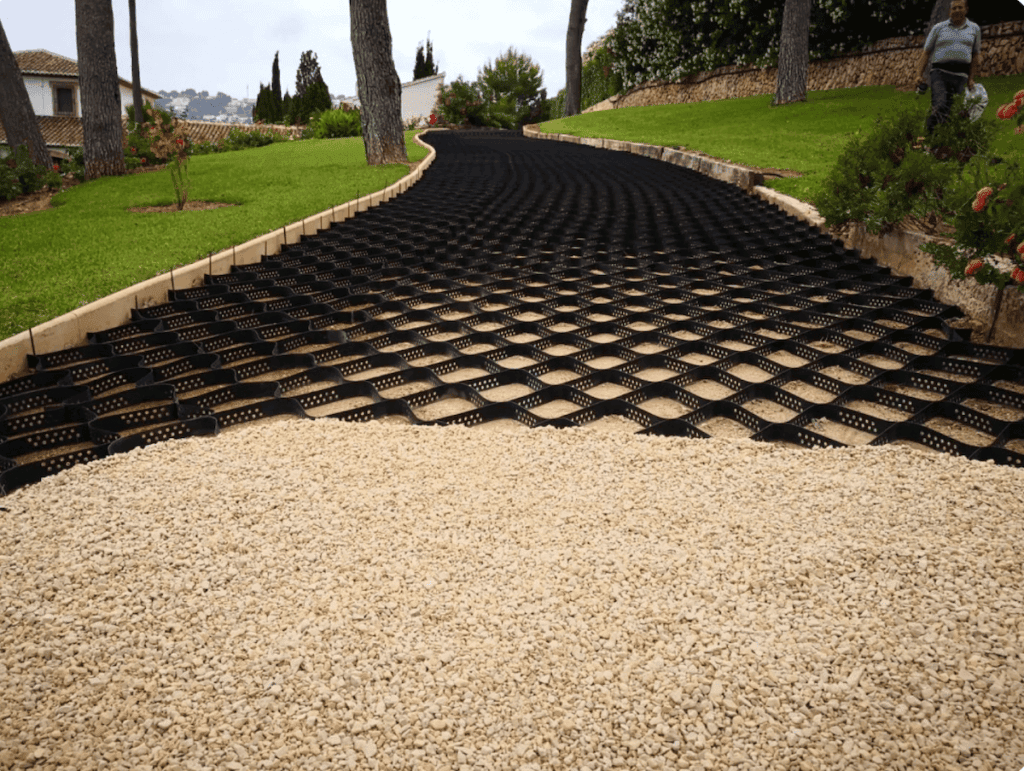

HDPE geocells installation for slope stabilization and erosion control

Applications

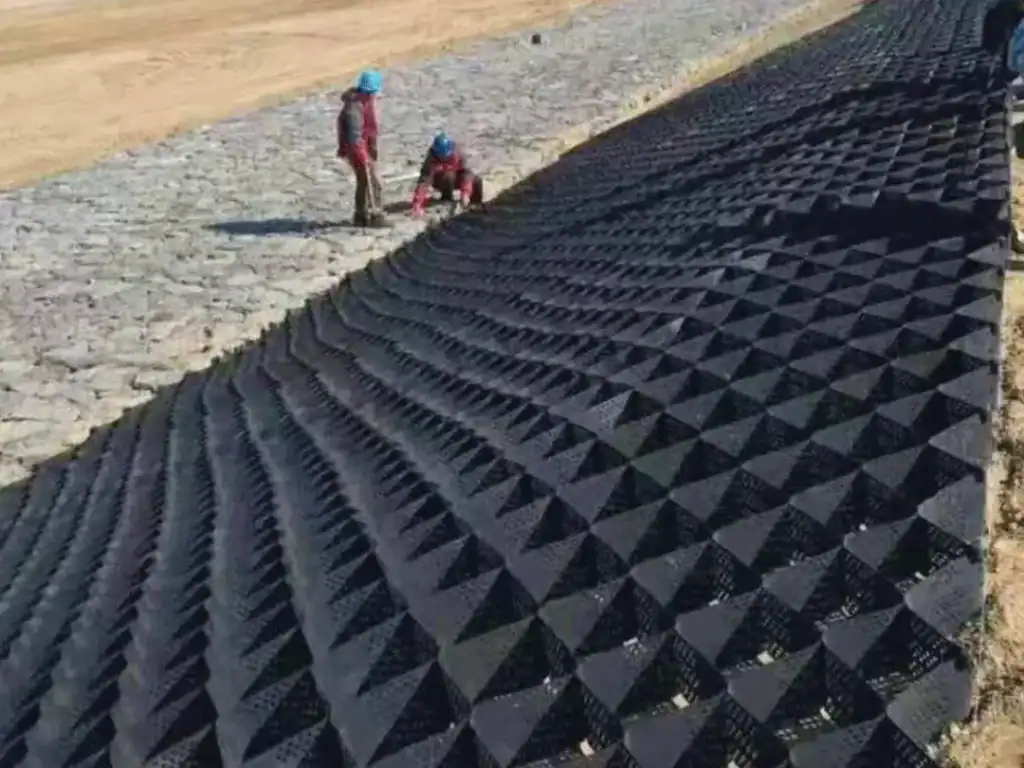

Textured geocell slope protection system installed on steep embankment for erosion control
Geocellular confinement system for road base reinforcement and load distribution under heavy traffic

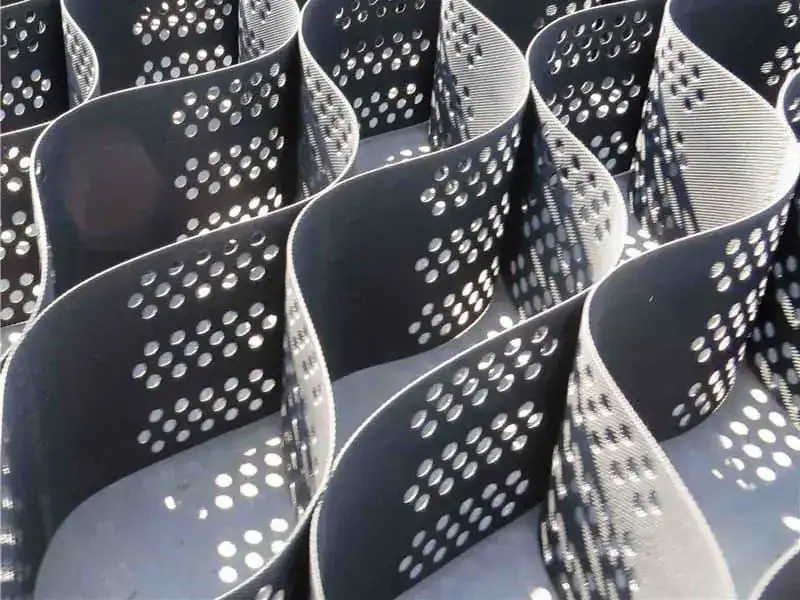

HDPE geocell channel lining for hydraulic flow control and bank stabilization

What is a Geocell?

Geocells are three-dimensional honeycomb structures made from HDPE strips and ultrasonically welded to create expandable cells. When filled with soil, sand, or aggregate, the system forms a stiffened composite layer for ground reinforcement, soil stabilization, and erosion control across roads, slopes, channels, and retaining wall facings.

  • High chemical resistance to acids, alkalis, salts, and many industrial process liquids.
  • UV-stabilized with 2–3% carbon black for long-term outdoor exposure.
  • Weldable & repairable: hot-wedge and extrusion welding produce strong, inspectable seams.
  • Fast deployment with wide rolls (up to ~8 m / 26 ft class) to reduce field seams and speed installation.

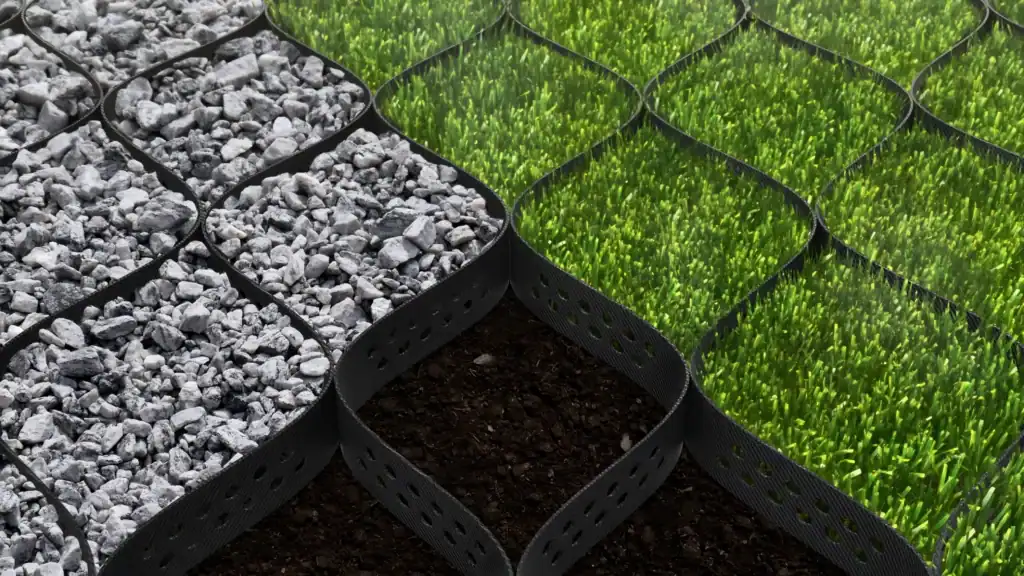

Expandable HDPE honeycomb geocell structure showing ultrasonic welds and textured surface

Why it Works

  • Confinement: Limits lateral movement of infill, increasing modulus and bearing capacity for improved load support.
  • Stress distribution: Spreads vertical loads over a wider area, lowering subgrade pressure and rutting.
  • Hydraulics & vegetation: Perforations enable hydraulic connectivity, while roots can pass between cells for green facings.
  • Fast, adaptive: Flexible sections follow ground contours and install quickly with simple tools.
  • Always install a Non-woven Geotextile separation layer underneath the Geocells to prevent aggregate loss and ensure long-term stability.
Diagram illustrating geocell confinement effect spreading vertical loads to reduce subgrade pressure

Standard Specifications

Below are common configurations. We also produce custom sizes. Request the full datasheet for ASTM/GRI index properties and seam strength.

ParameterOptions / Typical ValuesNotes & Benefits
Cell Height50 / 75 / 100 / 125 / 150 / 200 mmTaller cells for heavy loads, steep slopes, or wall facings.
Weld Spacing (Expanded Cell Size)330 / 356 / 400 / 445 / 660 / 712 mm (center-to-center)Smaller spacing = higher confinement density and greater modulus.
Strip Thickness1.1–1.7 mm (smooth or textured)Selected per project design and performance target.
SurfaceTextured or Smooth; Perforated or Non‑perforatedPerforations aid drainage and root interlock on green facings.
Polymer100% Virgin HDPEUV-stabilized with carbon black; antioxidant package for long service life.
ColorBlack (standard), Sand, GreenCustom color / branding available (MOQ applies).
Seam / WeldUltrasonicHigh seam strength; every batch QC tested.
StandardsASTM / GRI methods (see datasheet)Datasheet lists the relevant index property and seam-strength tests.

Designed for Results—Fast, Simple, Reliable

Built for contractors, distributors, and engineers who need outcomes: stronger bases, stable slopes, and predictable schedules. We make it easy to specify, buy, and deploy HDPE geocells that perform on site and deliver clean, professional handovers.

  • Lower total installed cost: Reduce aggregate usage and cut haul/compaction cycles (project-dependent).
  • Speed on site: Panels expand quickly; standard accessories and clear install guides keep crews moving.
  • Consistent quality: Every lot is traceable; batch QC records ship with the order.
  • Brandable options: Private-label packaging and documentation for distributors (MOQ applies).
  • Worldwide delivery: Export-ready packing, multimodal logistics, and responsive after-sales support.

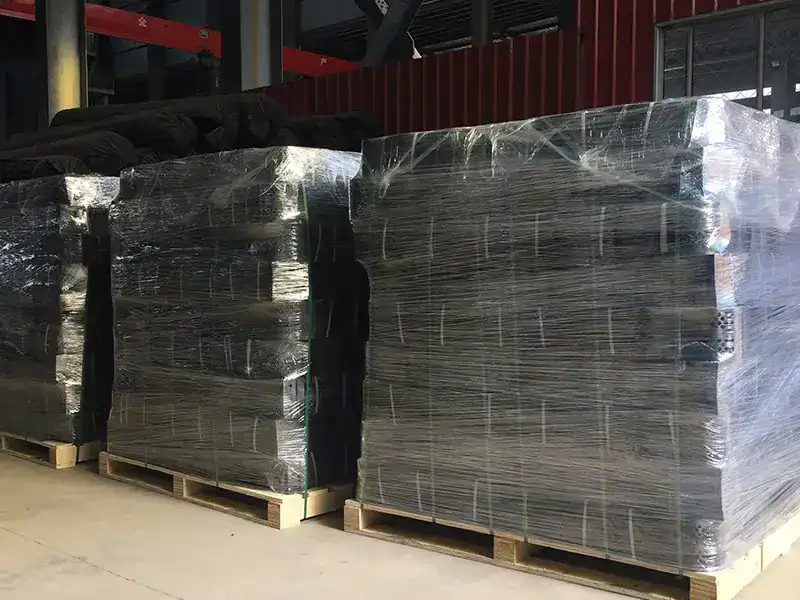

Palletized HDPE geocell panels ready for rapid deployment and installation on site
High-strength ultrasonically welded geocell strips with perforations for drainage and root interlock

Technical Assurance—At a Glance

  • Standards: Produced with reference to GRI-GS15 (HDPE geocells) and ASTM D8269 (use guide). Full index-property and seam-strength test methods are listed in the datasheet.
  • Materials: 100% virgin HDPE with carbon black for UV stability and an antioxidant package for long service life.
  • QC: Dimensional checks; seam peel/shear sampling; raw-material COA and batch test records.
  • Options: Textured or smooth; perforated or solid; common cell heights 50–200 mm; weld spacing 330–712 mm.

Installation Snapshot

Prepare subgrade and (if specified) place/sew geotextile separator.
Expand geocell panels and anchor per design (stakes, tendons, or keys).
Connect panels (hooks, staples, clips) and align over area.
Place infill (aggregate/soil) and compact in lifts; maintain cell tension.
Finish surface—paved, unpaved, vegetated, or rock as per design.
